Let's Go Fly a Kite

Introduction

One of the best things to do on a beautiful, windy day on the beach is to fly a kite. They can fly so high that sometimes their vibrant colors become nothing more than a tiny spot in the sky. But how can you accurately measure how high the kite is actually flying?

Test Setup

The setup for this procedure is pretty simple. We needed a kite with enough surface area to create the lift needed to overcome the weight of the B1100-1 USB Barometer. We used a 46" x 30" Nylon kite that had a wind range of 5-20 mph. A kite of this size would be able to lift the 43 gram USB Barometer into the air on a windy day. To avoid damaging the USB Barometer when the kite inevitably crashes into the sand or the Mississippi Sound, we placed it in a zipper storage bag. Then we duct taped the Barometer in the bag onto the string about 18 inches below the body of the kite. The B1100-1 USB Barometer was set at its default settings. The wind was blowing at a velocity of 23 km/h.

Kite Setup

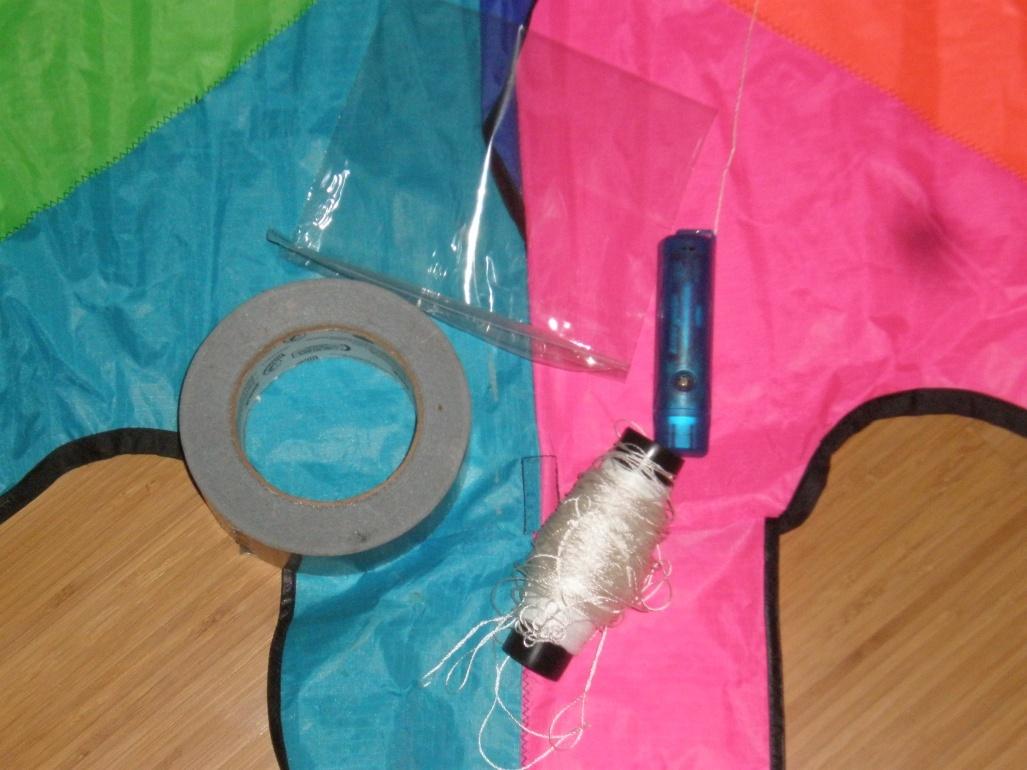

Materials for Experiment:


Default B1100-1 Settings:


Kite Setup

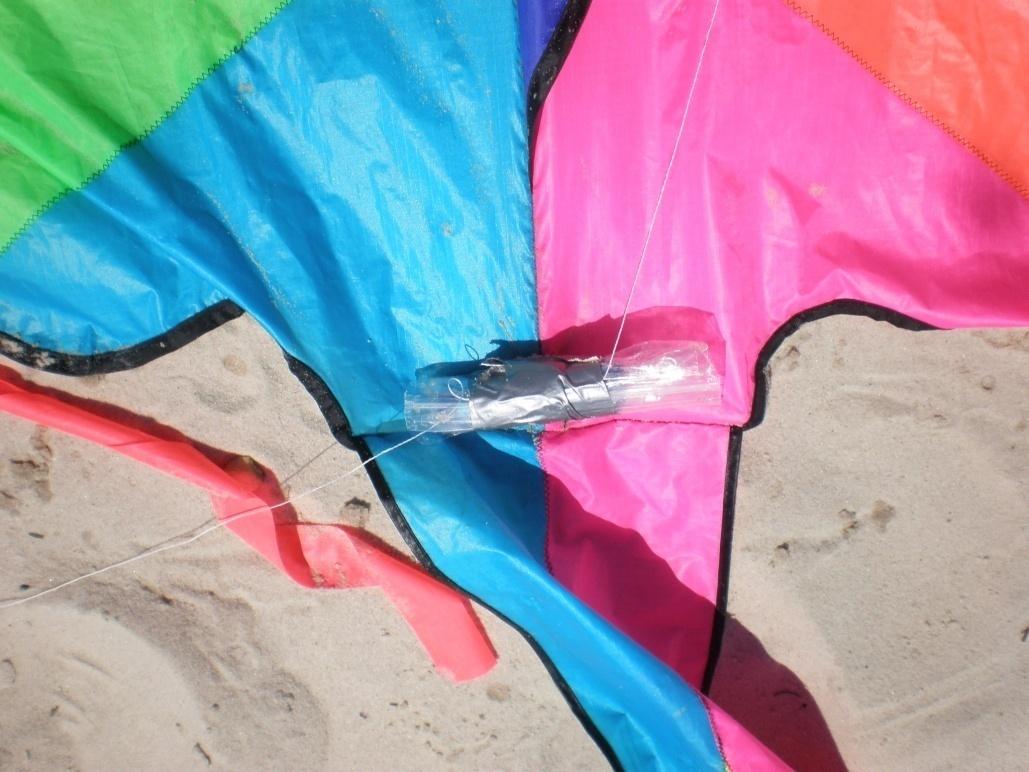

USB Barometer Taped to String of Kite

Test Procedure

After several failed attempts to get the kite up in the air, we caught enough wind to get a decent flight out of the kite. By keeping the string taught, the kite soared up into the air and into the blinding sun. The kite rose at a fairly steady rate from about 2:15 PM to 2:18 PM. At 2:18 the kite took a quick dip downward before beginning to climb back up. The kite took a much longer dip from about 2:21 to 2:23. The kite then climbed upward for about another minute before crashing to the ground.

Kite Soaring in the Wind
Kite and USB Barometer soaring in the air

Results

Copying the data from the XLR8R program into Excel, we were able to make charts of both the pressure and altitude of the kite during its flight. The raw pressure data collected by the USB Barometer during one failed attempt to fly the kite (A on graph below) followed by a superior flight (B) looked like this:

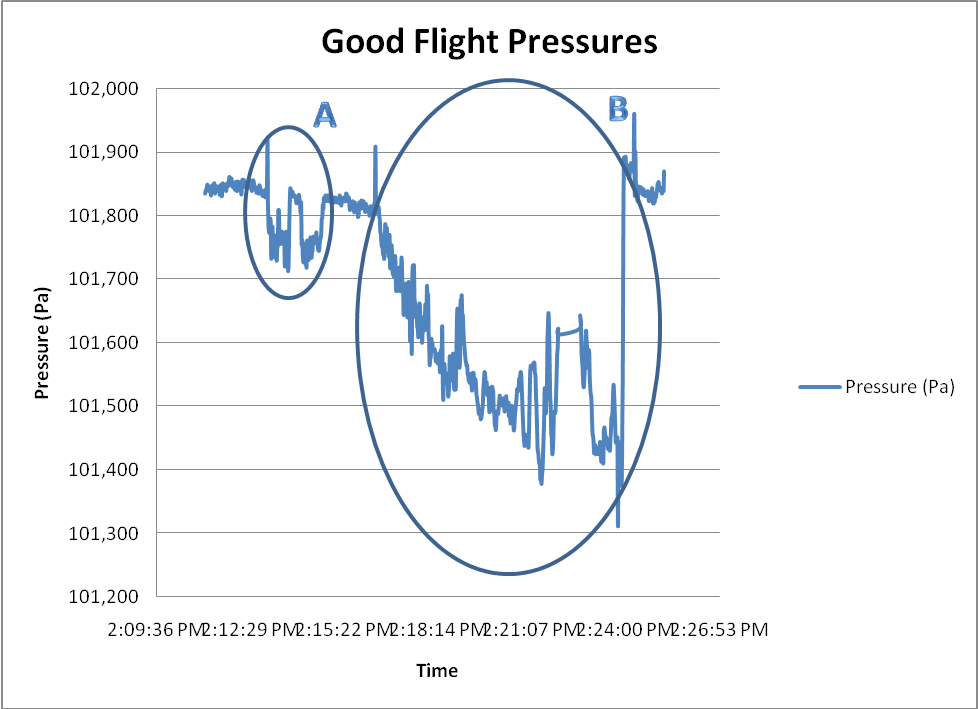

Barometric Pressure versus Time
Barometric Pressure versus Time During Flight

To calculate the altitude of the kite, we used the formula for absolute altitude

Pressure versus Altitude Formula

where p0 equaled the pressure at sea level on the day of flight. p0= 101,830 Pa per weather.com.

The graph for the altitude of the kite is illustrated below with "A" noting the failed flight attempt and "B" noting the successful flight.:

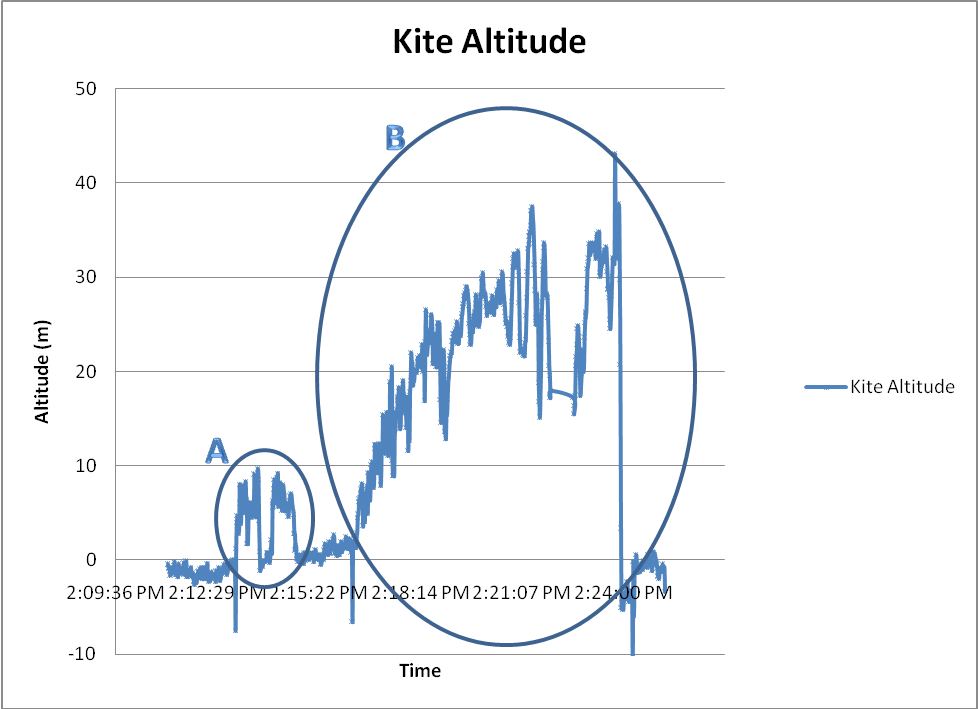

Altitude versus Time
Altitude versus Time During Flight

Discussion

The USB Barometer was able to make very accurate readings. At the times when the kite was on the ground, the calculated altitude was within a close margin of error to exactly sea level, which was where the kite was being flown from. The given pressure by weather.com was 101,830 Pa, and the USB Barometer measured 101,84416 Pa as sea level. One can see the climb of the kite and when it started to dip down, only to be caught again by the wind and continue to climb.

Conclusion

The highest calculated altitude for our kite was about 40 m just before it crashed. The USB Barometer was able to create accurate data that was a great deal of fun to collect.
